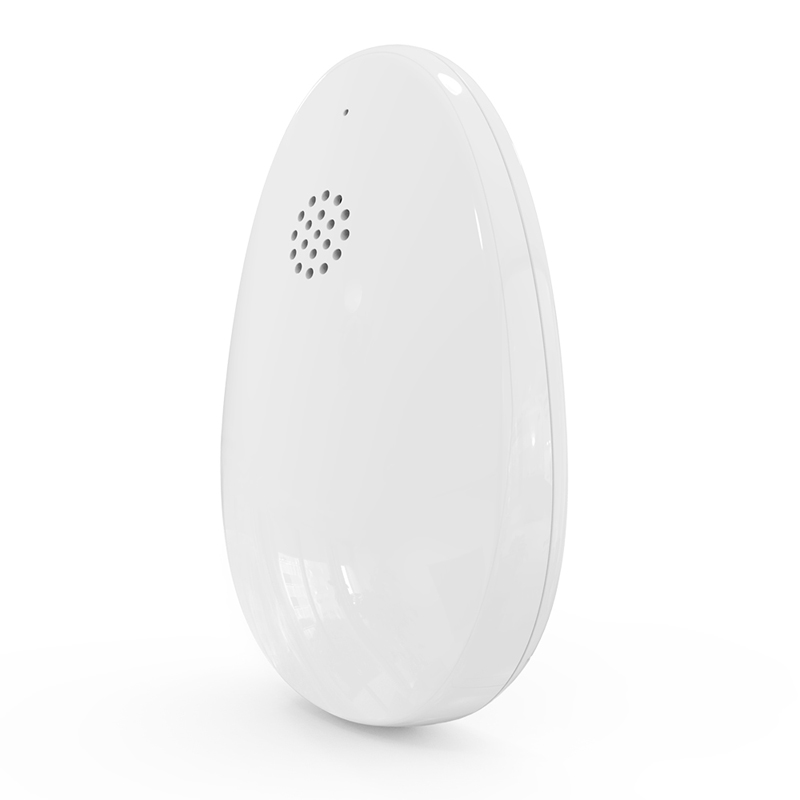

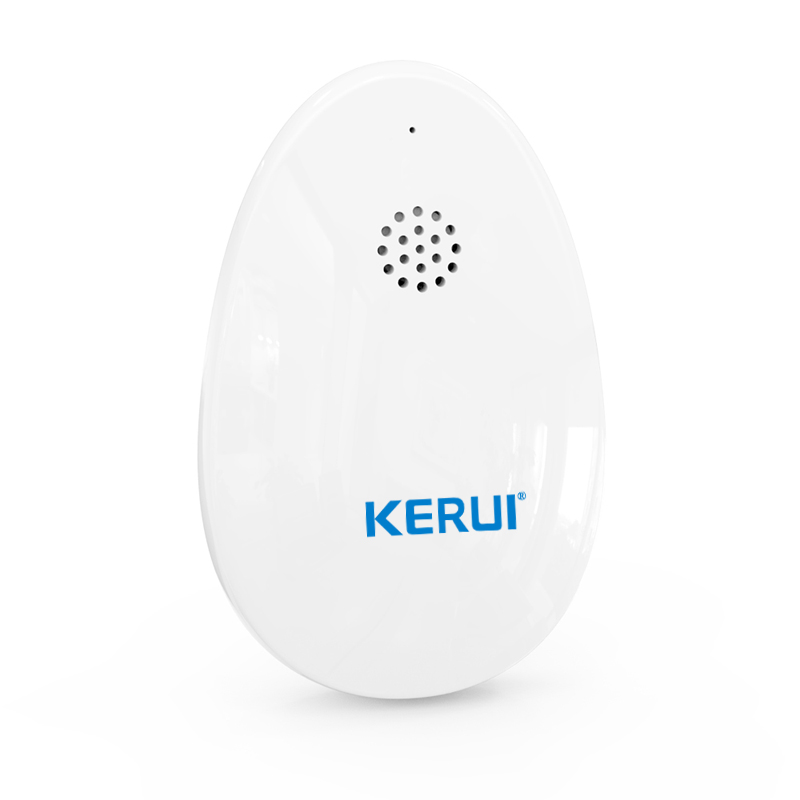

Home Security Alarm System RF 433MHz Wireless Sensor Glass Break Shock Vibration Detector

Glass Break Detector is high stable passive detectors, It uses advanced signal analysis processing technology, provides a high detection. When an intruder breaks the glass, the detector can be triggered immediately and send an alarm signal to the control panel, notify the user that someone has broken into. It is widely used in family homes, apartment villas, factories, malls, warehouses, office buildings other public place where need to be protected, and comprehensive guarantee personal and property safety.
Availability:
Quantity:
  • KR-GB2

  • KERUI

Product Description

Home Security Alarm System RF 433MHz Wireless Sensor Glass Break Shock Vibration Detector



Functions

Home Security Alarm System RF 433MHz Wireless Sensor Glass Break Shock Vibration Detector

Home Security Alarm System RF 433MHz Wireless Sensor Glass Break Shock Vibration Detector

Detection alarm function:When the detector detects the sound of surrounding broken glass,the indicator light is on for 1.5 seconds,and immediately send an alarm signal to the alarm host



Tampering function: There is a tamper button on the back of the detector.When the detector is removed and the tamper button is triggered, the indicator light is on for 2 seconds,and immediately send an alarm signal to the alarm host



Low battery remindWhen battery is low, it will send low battery signal to the host, Prompt "XX zone power shortage", to remind the user to replace the battery.



Sensitivity adjuster : there is a sensitivity adjuster on the back of the detector, you can  switch different sensitivities according different installation locations to adapt current environment ( 3 sensitivity adjustments: H-high sensitivity, M-middle sensitivity, L-low sensitivity)



Note: If you get false alarm after installation, please adjust the sensitivity to middle or lower; if you still get false alarm after chosen low sensitivity, change the installation place.





Installation

 Install the detector as close as possible to the doors and windows,suggest to install it on the ceiling near to the doors and windows;First, clean the corresponding position installed, tape with double-sided adhesive,and then install the detector slider on the double-sided adhesive,fix the detector to the slider

Home Security Alarm System RF 433MHz Wireless Sensor Glass Break Shock Vibration Detector

Note: 1. Do not install it in the places with massive noise and wind

     2. It is not waterproof and can not be installed outdoors





Product parameter



Product name

 Passive glass breaking alarm

Product model   KR-GB2
Transmission frequency   433MHz/868MHz
Working voltage   3V (2 No. 7 batteries)
Average standby current   < 60uA
Working temperature   -10℃~40℃
Alarm output   glass breaking alarm, anti-demolition alarm, low-voltage alarm

Home Security Alarm System RF 433MHz Wireless Sensor Glass Break Shock Vibration Detector
